Product overview

Xixi Wisdom Cloud Access Control opens the era of the Internet of Things, adopting the approach of hardware + software + platform. That is to keep the traditional swipe card to open the door to meet the old and young groups, and achieve young groups shake open the door, remote open the door, open the door on the code and other functions. Different appearance, different functions, to meet the different scene application.

Smart hardware

  • Metal two-dimensional code access control machine
  • 4G visitor QR code access control
  • Metal 4G scan code access control
  • Metal 4G QR code visitor access control
  • Single scanning of QR code access control
  • QR code single access control machine

  • QR code password card single door machine


    Basic equipment parameters:

    Operating voltage :DC12V

    Open the door: WeChat small program, two-dimensional code scanning door

    Open the door by swipe card, password, etc

    WeChat applet: open the door quickly

    Communication mode: WIFI (2.4 GHz frequency) or LAN cable

    Static current: 100mA

    Unlock type: NO and NC relay normally open normally closed output

    Card reading distance: IC card 1-5cm, Bluetooth less than 5 meters

    Operating temperature: -20--65 degrees

    Dimensions: 86*86*20mm

    Card storage capacity: 10000 cards

    Door opening record storage: 10000

    Visitor management: support QR code sharing, support limited time limited QR code

  • 4G visitor QR code access control


    Basic equipment parameters:

    Operating voltage :DC12V

    Open the door: mobile APP blue open the door, scan the two-dimensional code to open the door

    Open the door by swipe card, open the door remotely, WeChat scan open the door, etc

    Mobile APP support system: ISO7.0 or Android 4.3 or above version

    Communication method: 4G communication (all network)

    Static current: 100mA

    Unlock type: NO and NC relay normally open normally closed output

    Card reading distance: IC card 1-5cm, Bluetooth less than 5 meters, no distance limit for remote door opening

    Operating temperature: -20--65 degrees

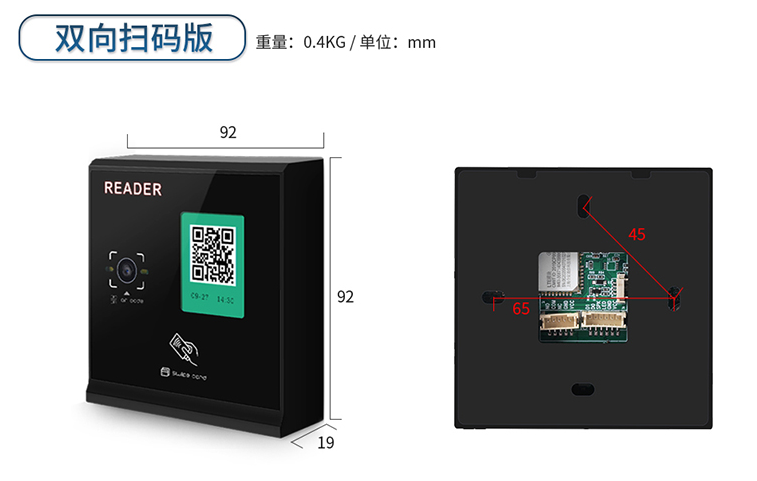

    Dimensions: 92*92*20mm

    Card storage capacity: 15,000 cards

    Door opening record storage: 13000

    Visitor management: support QR code sharing, support limited time limited QR code

  • Metal 4G scan code access control


    Basic equipment parameters:

    Operating voltage :DC12V

    Open the door: mobile APP blue open the door, scan the two-dimensional code to open the door

    Open the door by swipe card, open the door remotely, WeChat scan open the door, etc

    Mobile APP support system: ISO7.0 or Android 4.3 or above version

    Communication method: WiFi or GPRS traffic cartoon message

    Static current: 100mA

    Unlock type: NO and NC relay normally open normally closed output

    Card reading distance: IC card 1-5cm, Bluetooth less than 5 meters, no distance limit for remote door opening

    Operating temperature: -20--65 degrees

    Overall size: 112*76*20mm

    Card storage capacity: 15,000 cards

    Door opening record storage: 13000

  • Metal 4G visitor QR code access control


    Basic equipment parameters:

    Operating voltage :DC12V

    Open the door: mobile APP blue open the door, scan the two-dimensional code to open the door

    Open the door by swipe card, open the door remotely, WeChat scan open the door, etc

    Mobile APP support system: ISO7.0 or Android 4.3 or above version

    Communication method: 4G communication (all network)

    Static current: 100mA

    Unlock type: NO and NC relay normally open normally closed output

    Card reading distance: IC card 1-5cm, Bluetooth less than 5 meters, no distance limit for remote door opening

    Operating temperature: -20--65 degrees

    Dimensions: 86*86*20mm

    Card storage capacity: 15,000 cards

    Door opening record storage: 13000

    Visitor management: support QR code sharing, support limited time limited QR code

  • QR code card single door machine


    Basic equipment parameters:

    Operating voltage :DC12V

    Open the door: WeChat small program, two-dimensional code scanning door

    Swipe the card to open the door, etc

    WeChat applet: open the door quickly

    Communication mode: WIFI (2.4 GHz frequency) or LAN cable

    Static current: 100mA

    Unlock type: NO and NC relay normally open normally closed output

    Card reading distance: IC card 1-5cm, Bluetooth less than 5 meters

    Operating temperature: -20--65 degrees

    Dimensions: 92*92*20mm

    Card storage capacity: 15,000 cards

    Door opening record storage: 13000

    Management platform: Cloud platform management

    User: Small program two-dimensional code door

  • QR code single access control machine


    Basic equipment parameters:

    Operating voltage: DC12V

    Open the door: WeChat small program, two-dimensional code scanning door

    Open the door by swipe card, password, etc

    WeChat applet: open the door quickly

    Communication mode: Unmodel

    Static current: 100mA

    Unlock type: NO and NC relay normally open normally closed output

    Card reading distance: IC card 1-5cm, Bluetooth less than 5 meters

    Operating temperature: -20--65 degrees

    Overall size: 112*76*20mm

    Card storage capacity: 10000 cards

    Management mode: password management

Product advantage

  • Cloud Platform Management

    Face recognition access control, two-dimensional code cloud access control, mobile phone access control management, visitor access control management system and other products using cloud platform management, cloud storage, cloud backup

  • Web + program

    The management system uses Web terminal + small program management. Administrators manage devices and users through Web software. Users can use the small program "Xi Liankan" to achieve mobile phone Bluetooth door, remote door, two-dimensional code door.

  • Hardware diversification

    Xi see technology to create a variety of products: classic cloud access control, delicate cloud access control, face access control, two-dimensional code access control and so on, to meet the wisdom of the community, the wisdom of the park, construction sites, agencies, chain stores all kinds of scene applications.
